Wanjia 2019 New Selling 10A 12V 5pin PCB Relay Jzc-22f

On the basis of ensuring the quality of our auto changeover relay, automotive electrical appliance relay, subminiature signal relay, we improve the service level, establish the service consciousness of customer first, and honor our promise with honest practice. We have advanced testing equipment, exquisite production technology, strict management means, the production of products for the whole process of quality control. Our company adopts modern and advanced sophisticated management methods and strictly implements the quality management system, which greatly reduces production costs. 'Pioneering and innovation' is our way forward. We win customers with considerate service. We sincerely hope to discuss cooperation with every customer for mutual benefit and common progress.

1 Product Overview of pcb 10a 12v relay

Product feature:

◆ Miniature, suitable for installation on high density PCB

◆ Water-proof type

◆ Suitable for fitness equipments, industrial control equipment, automatization control system, etc.

◆ Outline dimensions: 29*12.6*20.6mm

◆ It Can replace Omron's similar relay with model No. G2R

◆ It Can replace Songchuan's similar relay with model No.845

◆ It Can replace Hongfa's similar relay with model No.HF14FF

Designation principle of above relay, buyer can choose correct one by following introduction.

Name rule :

GP - 12VDC -C- 54

1            2       3   4

1 Model No.

2 Nominal Coil Voltage: 5,6,9,12,18,24,48V(DC)

3 Contact Form: A: Normally Open C: Normally open & close

4 Nominal Coil Power: 54:0.54W, 72: 0.72W

2 Parameter diagram of pcb 10a 12v relay

Contact rating

Contact Form		1A, 1C
Contact Material		AgSnO2 AgCdO
Contact Rating (Resistive)		10A 250VAC/30VDC
Switching Power Max.		300W 2500VA
Switching Voltage Max.		30VDC 250VAC
Switching Current Max.		10A
Contact Resistance		≤ lOOmQ
Endurance	Electrical	105
	Mechanical	107

Technical Rating

Insulation Resistance		100MQ(500VDC)Min.	Item 7 of IEC 255-5
Dielectric Strength	Between Open Contacts	1000VAC 50Hz	Item 5 of IEC 255-5
	Between Contact and Coil	2500VAC	Item 6 of IEC 255-5
Shock Resistance		100m/s2	IEC 68-2-27 Test Ea
Vibration Resistance		10Hz ~ 50Hz double amplitude 1.5mm
Leading-out Terminal Strength		10N
Ambient Temperature		-30°C ~ 70°C
Relative Humidity		85% (at40°C )
Weight		12g

Coil Rating

Coil Voltage(VDC)		Coil Resistance	PickupMax.(VDC) (75% of Nominal Voltage)	Drop out Min.(VDC) (10% of Nominal Voltage)	Coil Power (W) 0.54/0.72	Operate Time (ms) 15	Release Time (ms) 5
Nominal	Max.	R(1 ± 10%)Q
5	6.5	47/36	4	0.25
6	7.8	68/50	4.8	0.3
9	11.7	155/115	7.2	0.45
12	15.6	270/200	9.6	0.6
24	31.2	1100/820	19.2	1.2
48	62.4	4400/3300	38.4	2.4

3 Measurement and circuit of pcb 10a 12v relay

Outline Dimensions

Bottom View PCB Layout

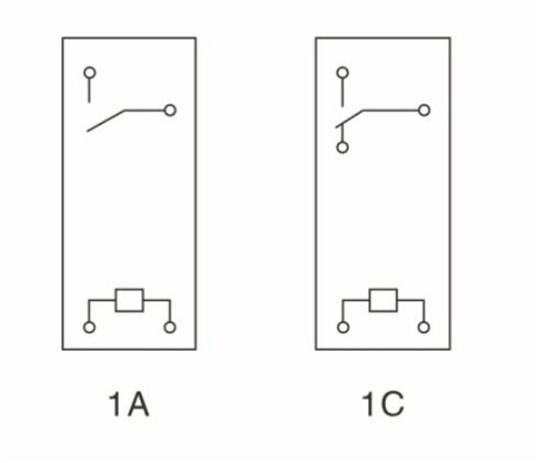

Wiring Diagram ( Bottom View)

Engineering Data
