1 Product Introduction of dpdt power relay

Product feature:

◆ Small size, light weight

◆ Low coil power consumption

◆Contact rating:DPST & DPDT 2*8 and SPST & SPDT 16A

◆PCB terminals

◆Suitable for household appliances, automatization system, electronic equipments, instruments, communication and remote control device,etc.

◆Environmental friendly product

◆Outline dimensions: 29*12.7*15.7mm

◆ It Can replace Omron's similar relay with model No.G2RL

◆ It Can replace Hongfa's similar relay with model No.HF115F

◆ It Can replace Songchuan's similar relay with model No.888

Defining for this relay

Name rule :

GN - 12VDC -1A -S 16

1             2       3    4  5

1 Model No.

2 Nominal Coil Voltage: 5,6,9,12,18,24,48V(DC)

3 Contact Form: 1A 1B 1C 2A 2C

4 Construction: S: sealed type Nil: Flux tight type

5 Contact rating: 8: 8A 16:16A

2 Parameter table of dpdt power relay

Contact rating

Contact Form		1A,1B, 1C, 2A,2C
Contact Material		AgSnO2 AgCdO
Contact Rating		16A 250VAC, 2*8A 250VAC, 1/2HP 125VAC/250VAC
Switching Power Max.		SPST & SPDT:480W/4000VA, DPST&DPDT:240W/2000VA
Switching Voltage Max.		30VDC/400VAC
Switching Current Max.		16A
Contact Resistance		≤ lOOmQ
Endurance	Electrical	105
	Mechanical	107

Technical Rating

Insulation Resistance		1000MQ(500VDC)Min.	Item 7 of IEC 60255-5
Dielectric Strength	Between Open Contacts	1000VAC	Item 6 of IEC 60255-5
	Between contact Group	2500VAC	Item 6 of IEC 60255-5
	Between Contact and Coil	5000VAC	Item 6 of IEC 60255-5
Shock Resistance		Operation extremes 10G Damage limits 100G	IEC 68-2-27 Test Ea
Vibration Resistance		10Hz ~ 50Hz 10g/5g	IEC 68-2-6 Test FC
Ambient Temperature		-40°C ~ 85°C
Relative Humidity		35%-85%	IEC 68-2-3 Test Ca
Weight		13g

Coil Rating

Coil Voltage(VDC)		Coil Resistance	PickupMax.(VDC) (75% of Nominal Voltage)	Drop out Min.(VDC) (10% of Nominal Voltage)	Coil Power	Operate Time (ms) ≤15	Release Time
Nominal	Max.	R(1 ± 10%)Q			(W) 0.40		(ms) ≤8
5	6.5	47/36	3.75	0.5
6	7.8	68/50	4.5	0.6
9	11.7	155/115	6.75	0.9
12	15.6	270/200	9	1.2
18	23.4	810	13.5	1.8
24	31.2	1100/820	18	2.4
48	62.4	4400/3300	36	4.8

3 Measurement and electrocircuit of dpdt power relay

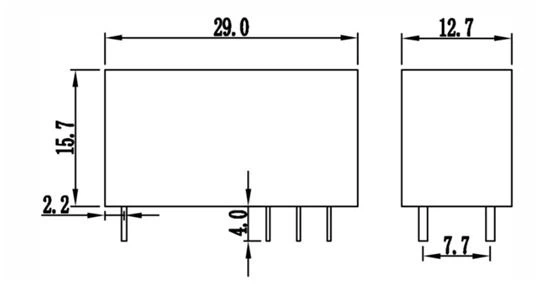

Outline Dimensions

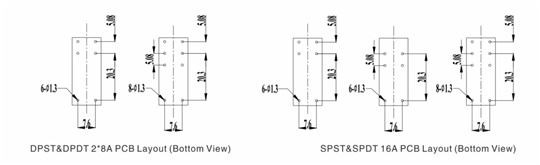

Bottom View PCB Layout

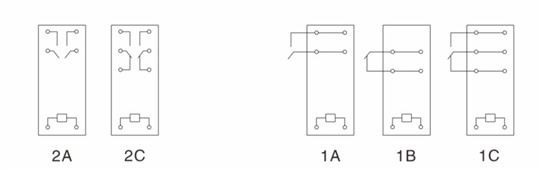

Wiring Diagram ( Bottom View)
