1 Product Survey of 12v 25a relay

Product feature:

◆ Switching current 25A

◆ PCB & Quick-terminal available

◆Insulation grade Class F

◆Suitable for household appliances, such as air conditioner,heater...etc.

◆Outline dimensions:30.5*16*26.5mm / 30.5*16*23.5mm+9.7mm

◆ It Can replace Omron's similar relay with model No.G4A

◆ It Can replace Hongfa's similar relay with model No.HF102F

◆ It Can replace Songchuan's similar relay with model No.891

Defining principle, Choose correct model by following explanation.

Name rule :

CE - 12VDC -A 25 -P

1           2       3  4   5

1 Model No.

2 Nominal Coil Voltage: 5,6,9,12,18,24,48V(DC)

3 Contact Form: A: Normally open

4 Contact rating: 25A

5 Terminal types: P:PCB type Nil: PCB & Quick-terminal type

2 Parameter sheet of 12v 25a relay

Contact rating

Contact Form		1A
Contact Resistance		≤ lOOmQ
Contact material		Ag Alloy
Contact Rating		Resistive:25A 277VAC; Motor load: 1.5HP 125VAC; 1.5HP 250VAC; TV-10 120VAC
Switching Power Max.		6250VAC
Switching Voltage Max.		277 VAC
Switching Current Max.		Resistive 25A
Endurance	Electrical	105
	Mechanical	107

Technical Rating

Insulation Resistance		1000MQ(500VDC)Min.	Item 7 of IEC60 255-5
Dielectric Strength	Between Open Contacts	1500VAC 1 min	Item 6 of IEC 60255-5
	Between Contact and Coil	4500VAC 1 min	Item 6 of IEC 60255-5
Operate time		≤ 20ms
Release time		≤ 10ms
Coil temperature		≤ 60K
Shock Resistance		Operation extremes 20G Damage limits 100G	IEC 68-2-27 Test Ea
Vibration Resistance		10Hz ~ 55Hz double amplitude 1.5mm	IEC 68-2-6 Test Fc
Ambient Temperature		-40°C ~ 55°C
Construction		Dust proof type
Weight		23g

Coil Rating

Nominal Coil Voltage(VDC)	Coil Resistance R(1 ± 10%)Q	PickupMax.(VDC)	Drop out Min.(VDC)	Coil Power (W)	Coil Voltage Max.(VDC)
5	27.8	3.5	0.5	0.9	6
12	160	8.4	1.2	14.4
24	640	16.8	2.4	28.8
48	2560	33.6	4.8	57.6

Safety Certification
Approval	CQC	UL
Load Rating	25A/250VAC	25A/277VAC	1.5HP/250VAC	1.5HP/125VAC	TV-10/120VAC
	5x104	1x105	1x104	1x105	2.5x104

3 Dimension and circuitry of 12v 25a relay

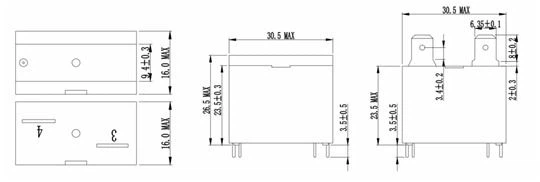

Outline Dimensions

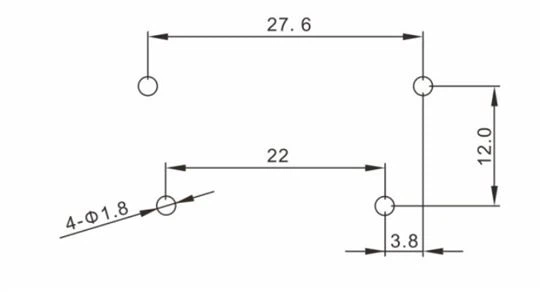

Bottom View PCB Layout

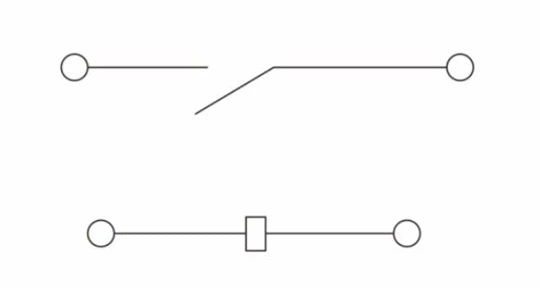

Wiring Diagram ( Bottom View)
