Jd1914 5p 12V 24V 40A 60A 4pins 5 Pin Green Automotive Relay

With continuous product innovation, we will develop newer, unique and exquisite 24 volt ac relay, 4 pin signal relay, 45 amp automotive relay to serve our clients. With the help of forward-looking strategic vision, our company effectively integrates capital and technology, and rapidly grows into a well-known enterprise. We regard environmental protection as the bottom line of law-abiding operation and the lifeline for survival. Since its establishment, the company has focused on product development and training of scientific and technological talents, and now has a complete set of core technology and scientific quality management system for product development and manufacturing.

1 Product Recommendation of 70 ampere 5 pin automotive relay

Product feature:

◆Small size

◆ Switching current Max. 70A

◆ Plug-in or PC board terminals available

◆ Auxiliary automotive part

◆Outline dimensions:25.8*25.8*24mm

◆ It Can replace Omron's similar relay with model No.G8JR

◆ It Can replace Hongfa's similar relay with model No.HFV7

◆ It Can replace Songchuan's similar relay with model No.897

Overview

5 Pin Automotive Relay consists of magnetic circuit system, contact system and restoration mechanism. The magnetic circuit system consists of iron core, yoke, armature, coil and other parts. The contact system consists of static spring, dynamic spring, contact base and other parts. The restoring mechanism is composed of restoring reed or tension spring. The insulating material used in the product shall have good temperature resistance, and the long-term working temperature shall reach 125 ℃.

Contact material is the most critical material used in relay, and its performance determines the quality level of relay. Our 5 Pin Automotive Relay adopts high-quality electric shock with good performance. Electromagnetic compatibility (EMC) is the ability of automotive relays to work without interference or interference in the electromagnetic environment. EMC has become an important criterion for judging product quality.

2 Information table of 70 ampere 5 pin automotive relay

Contact rating

Contact Form		1A
Contact material		Ag Alloy
Contact Rating (Resistive)		NO: 70A 14VDC
Switching Power Max.		980W
Switching Voltage Max.		75VDC
Voltage Drop		≤50mV ( @10A) Item 4.12 of IEC 61810-7
Endurance	Electrical	105 Item 4.30 of IEC 61810-7
	Mechanical	107 Item 4.31 of IEC 61810-7

Technical Rating

Insulation Resistance		100MQ(500VDC)Min.	Item 7 of IEC60 255-5
Dielectric Strength	Between Open Contacts	500VAC 1min 50Hz/60Hz	Item 6 of IEC60 255-5
	Between Contact and Coil	500VAC 1min 50Hz/60Hz	Item 6 of IEC60 255-5
Shock Resistance		Operation extremes 10G, Damage limits 100G	IEC 68-2-27 Test Ea
Vibration Resistance		Operation extremes 10-500Hz,5.0G, Damage limits 10-500Hz,5.0G	IEC 68-2-6 Test Fc
Ambient Temperature		-40°C ~ 125°C
Relative Humidity		85% (40°C )	IEC 68-2-3 Test Ca
Weight		40g

No.	Coil Voltage(VDC)		Coil ResistanceΩ±10%	Pick up (VDC) Max. (75% of Rated Voltage)	Drop out (VDC) Min.(10% of Rated Voltage)	Power (W)	Operate Time (ms)	Release Time (ms)
	Rated	Max.
006-160	6	7.8	22.5	3.9	0.6	1.6	≤ 7	≤ 5
012-160	12	15.6	90	7.8	1.2
024-160	24	31.2	360	15.6	2.4
006-190	6	7.8	19	3.9	0.6	1.9
012-190	12	15.6	75.7	7.8	1.2
024-190	24	31.2	303	15.6	2.4

3 Measurement and circuit of 70 ampere 5 pin automotive relay

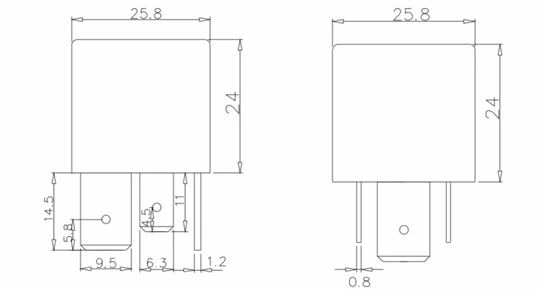

Outline Dimensions

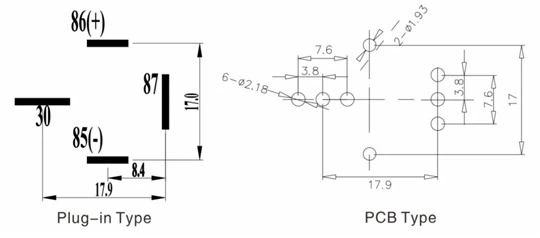

Bottom View PCB Layout

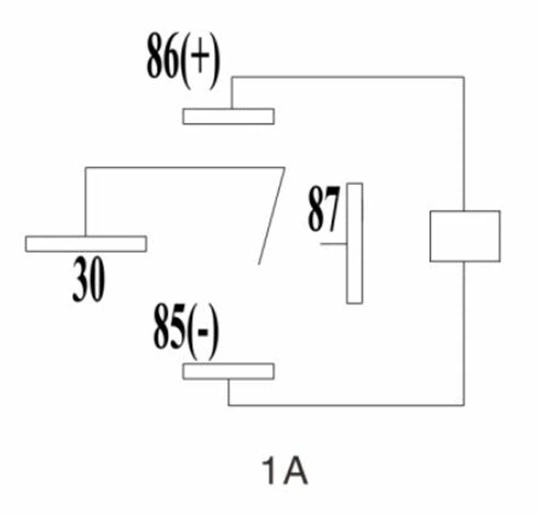

Wiring Diagram ( Bottom View)

4.FAQ

Q: Do you have QC department?

A: Yes,we have 6 QC persons

Q: Do you have an export licence?

Yes.
