1  Product Recommendation  for  20 ampere small relay 12v

Product Features :

◆ High contact Load ability: Max 12A

◆ High sensitiveness:200mW

◆ Congruent  for PCB

◆ Agree with RoHS Directive

◆ Deplanate type

◆ Flux-tight&Sealed type acceptable

◆ Dimensions: 23.0*16.2*10.6 mm

◆ Its a power sensing relay

Overview

Our Small Relay 12v adopts composite silver contacts to carry high current and increase contact stability and sensitivity. The red copper coil has strong pull-in ability. The standard sufficient electromagnetic coil makes the product run stably, carry current and pull-in more reliable. High quality copper parts, long service life, stronger conductivity and heat dissipation, ensuring mechanical and electrical.

Our Small Relay 12v has a wide range of applications. It is widely used in power switches, electric heaters, ventilators, air conditioners, refrigeration, automobiles and household appliances. We have a number of professional relay R & D engineers to provide you with reasonable solutions from preliminary scheme design to after-sales service.  We are committed to accelerating the brand building of our product and expanding our sales network.  We believe that as long as we continue to implement the company's core values, we will be able to achieve mutual benefit and win-win results with our customers and create a brilliant future!

2  Parameter table of  20 ampere small relay 12v

Contact Rating
Contact Form	1A
Contact Material	AgCdO    AgSnO2
Contact Load Capacity	16A 250VAC/30VDC,16A 125/277VAC, TV-5 125VAC, 1/3HP 1/4HP 120VAC/125VAC
	120W tungsten lamp load, 0.2W:800va,960va  0.36W:1385VA Electronic ballast load
Switching Power Max.		480W 4000VA
Switching Voltage Max.		30VDC/277VAC
Switching Current Max.		20A
Contact Resistance Max.		100mΩ(1A 24VDC)
Life expectancy		Electrical	10 5
		Machanical	10 7

Coil Rating
1A   200mW							1A   360mW
No.	Coil Voltage		Coil Resistance               Ω±10%	Pick up (VDC) Max. (80% of Rated Voltage)	Drop out (VDC) Min.(10% of Rated Voltage)		No.	Coil Voltage		Coil Resistance              Ω±10%	Pick up (VDC) Max. (80% of Rated Voltage)	Drop out (VDC) Min.(10% of Rated Voltage)
	Rated	Max.						Rated	Max.
5	5	6.5	125	4	0.5		5	5	6.5	62.5	4	0.5
6	6	7.8	180	4.8	0.6		6	6	7.8	90	4.8	0.6
9	9	11.7	405	7.2	0.9		9	9	11.7	202.5	7.2	0.9
12	12	15.6	720	9.6	1.2		12	12	15.6	360	9.6	1.2
18	18	23.4	1620	14.4	1.8		18	18	23.4	810	14.4	1.8
24	24	31.2	2880	19.2	2.4		24	24	31.2	1440	19.2	2.4
48	48	52.8	11520	38.4	4.8		48	48	52.8	5760	38.4	4.8

Technical Rating
Insulation Resistance		Min.1000MΩ(500VDC)	IEC 60255-5
Dielectric Strength	Between Coil&Contact	1000VAC 1min	IEC 60255-5
	Between Contacts	2500VAC 1min	IEC 60255-5
Operate Time		≤10ms
Release Time		≤5ms
Shock Resistance		Operation extremes 10G   Damage limits 100G	IEC 68-2-27 test Ea
Vibration Resistance		10Hz～55Hz amplitude 1.5mm	IEC 68-2-6 test Fc
Leading-out Form		PCB type	IEC 68-2-21 test Ua1
Ambient Temperature		﹣40℃～85℃;﹣40℃～105℃
Relative Humidity		85%  RH	IEC 68-2-3 test Ca
Weight		Approx.8.0g
Package		Sealed,Solder-proof type

Safety Certification
Approval	CQC/TUV	UL
Load	16A 250VAC 30VDC	16A 277VAC,16A 125VAC, TV-5 125VAC,1/3  Motor, 1/4 Motor, 1200W Tungsten, 800VA E.B, 960VA E.B, 1385VA E.B.

3  Size and electrocircuit of  20 ampere small relay 12v

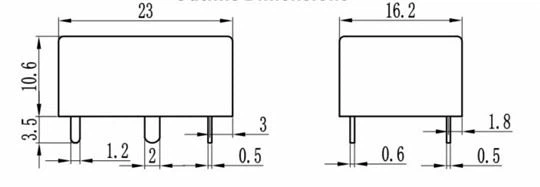

Outline Dimensions

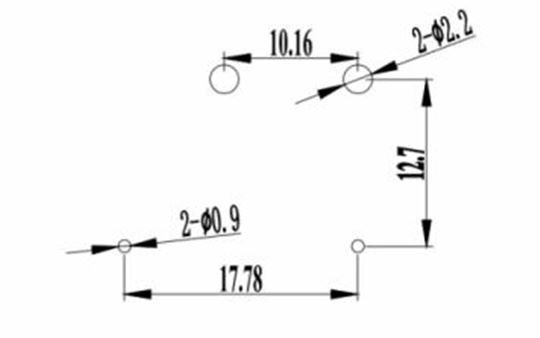

Bottom View Layout

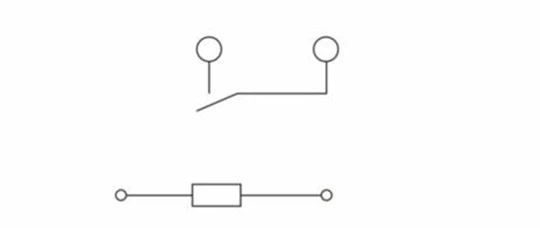

Wiring Diagram(Bottom View)
