1 Product Overview of automotive timer relay

Product feature:

◆ Subminiature,high power automotive relay

◆ Switching current Max.30A

◆ Light weight

◆ Sealed&Dust-proof types avaliable

◆ Fit for automotive central door lock,wiper,instrument,security system,flash lamps,seat heating,etc.

◆ Dimension:12.9*12*9.9mm

◆ It Can replace Hongfa's similar relay with model No.HFKC

◆ It Can replace Songchuan's similar relay with model No.YH520/YH527

Designation, We will give precise introduction if you contact our sales department.

Name rule :

MK - C -S - 12

1        2  3    4

1 Model No.

2 Contact Form: A: Normally open C: Normally open & close

3 Construction: S: Sealed type E: Flux tight type

4 Nominal Coil Voltage: 6,10,12, 24V(DC)

2 Figure table of automotive timer relay

Contact Rating

Contact Form

1A:SPSTNO; 1C:SPDT(B-M)

Contact Material

AgSnO2 AgNi

Contact Load Capacity

NO:30A; NC:25A

Switching Voltage Max.

16 VDC

Switching Current Max.

30A

Load Min.

1A/6VDC

Voltage Drop

≤50mV ( @10A)

Life Expectancy

Machanical

1*107

Electrical

See below charts

SPST:1A

SPDT:1C

Load Voltage

Load Type

Current (A)

On&Off

Life Expectancy

Load Voltage

Load Type

Current (A)

On&Off

Life Expectancy

On(s)

Off(s)

On(s)

Off(s)

13.5VDC

Resistive

On

20

1

5

3*105

13.5VDC

Resistive

On

20

1

5

3*105

Off

20

Off

20

Wiper motor load

On

25

0.2

2

3*105

Flash lamp

On

3*21w

0.365

0.365

2*106

Off

5

1.8

Off

Motor Lock

On

20

0.2

2

1*105

Front lamp

On

40

2

2

1*105

Off

20

Off

10

Coil Rating(20℃)
Coil Voltage (VDC)	Pick up Max. (VDC)	Drop out Min. (VDC)	Coil Resistance (1±10%)Ω	Power (W)	Coil Voltage Max.(VDC)
					20℃	85℃
5	3	0.62	45	0.55	6.5	10.5
10	6	1.25	181	0.55	13	22
12	7	1.5	255	0.55	16	26
	6.9	1.5	181	0.8	13	22
24	14	3	1050	0.55	32	52

Technical Rating
Insulation Resistance	100MΩ(500VDC)	IEC 60255-5
Dielectrical Strength	500VAC 1min	IEC 60255-5
Operate Time	≤10ms , Typical≤4ms
Release Time	≤10ms ,Typical≤3ms
Shock Resistance	294m/s 2	IEC 68-2-27 test Ea
Vibration Resistance	10Hz～50Hz 58.8m/s2	IEC 68-2-6 test Fc
Leading-out Terminal	PCB terminal
Weldability	(250±3)℃ ,(3±0.3)s
Ambient Temperature	﹣40℃～105℃
Package	Sealed,Dust-proof type
Weight	Approx.4g

3 Size and circuitry of automotive timer relay

Outline Dimensions

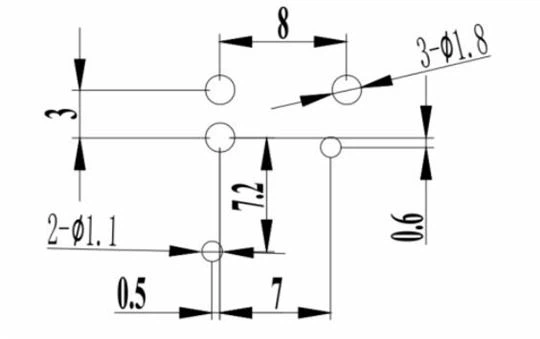

Bottom View PCB Layout

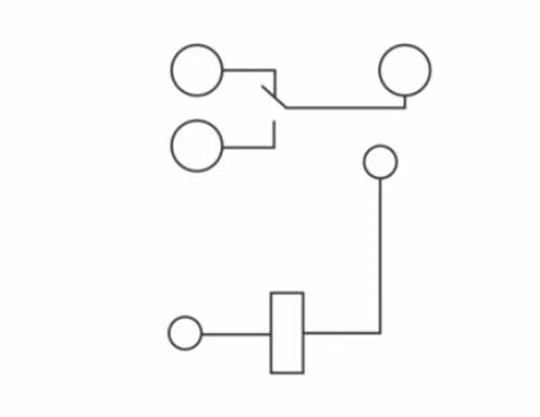

Wiring Diagram ( Bottom View)
