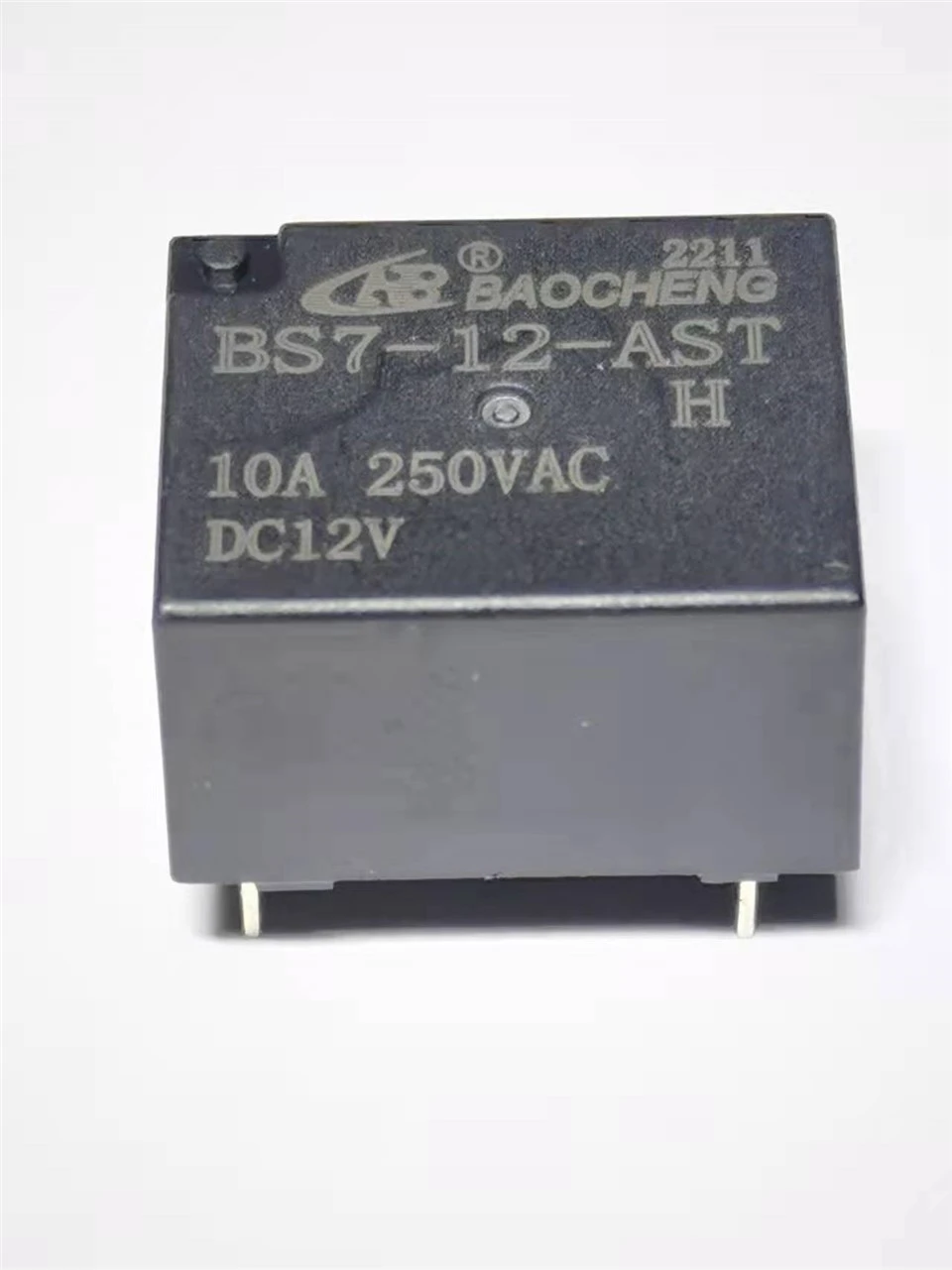

1 Product Survey of power relay 10 ampere Product Features ◆ Heavy Load: NO:10A ◆ High Sensitivity:200mW 450mW ◆ Fit for PCB ◆ Complies with RoHS Directive ◆ Flat type ◆ Flux-tight&Sealed type available ◆ Dimensions: 18.4*15.2*10.2 mm ◆ It Can replace Hongfa’s similar relay with model No....
Description
1 Product Survey of power relay 10 ampere
Product Features
◆ Heavy Load: NO:10A
◆ High Sensitivity:200mW 450mW
◆ Fit for PCB
◆ Complies with RoHS Directive
◆ Flat type
◆ Flux-tight&Sealed type available
◆ Dimensions: 18.4*15.2*10.2 mm
◆ It Can replace Hongfa's similar relay with model No. HF7520
Name principle for this relay.
| BS7 | -5 | -A | S | T |
| 1 | 2 | 3 | 4 | 5 |
1, BS7：Model No. 2, 5: Coil rated power(VDC):5,6,9,12,18,24,48 3, A：Contact Form: one group of NO
4,S：Sealed type;None：Flux-tight type 5, T：Contact Material: AgSnO2 ;D:AgCdo
2 Parameter chart of power relay 10 ampere
Contact Rating | ||
Contact Form | 1A | |
Contact Material | Ag Alloy | |
Contact Load Capacity | 1A--P 10A/250VAC, 30VAC | |
Switching Power Max. | 300W 2500VA | |
Switching Voltage Max. | 30VDC/250VAC | |
Switching Current Max. | 12A | |
Contact Resistance Max. | 100mΩ(1A 24VDC) | |
Life expectancy | Electrical | 10 5 |
Machanical | 10 7 | |
Coil Rating | |||||||||||
200mW | 450mW | ||||||||||
No. | Coil Voltage | Coil Resistance Ω±10% | Pick up (VDC) Max. (80% of Rated Voltage) | Drop out (VDC) Min.(10% of Rated Voltage) | No. | Coil Voltage | Coil Resistance Ω±10% | Pick up (VDC) Max. (80% of Rated Voltage) | Drop out (VDC) Min.(10% of Rated Voltage) | ||
Rated | Max. | Rated | Max. | ||||||||
005 | 5.0 | 6.5 | 125 | 4.00 | 0.50 | 005 | 5.0 | 6.5 | 62.5 | 4.00 | 0.50 |
006 | 6.0 | 7.8 | 180 | 4.80 | 0.60 | 006 | 6.0 | 7.8 | 90 | 4.80 | 0.60 |
009 | 9.0 | 11.7 | 405 | 7.20 | 0.90 | 009 | 9.0 | 11.7 | 202.5 | 7.20 | 0.90 |
012 | 12.0 | 15.6 | 720 | 9.60 | 1.20 | 012 | 12.0 | 15.6 | 360 | 9.60 | 1.20 |
018 | 18.0 | 23.4 | 1620 | 14.40 | 1.80 | 018 | 18.0 | 23.4 | 810 | 14.40 | 1.80 |
024 | 24.0 | 31.2 | 2880 | 19.20 | 2.40 | 024 | 24.0 | 31.2 | 1440 | 19.20 | 2.40 |
048 | 48.0 | 52.8 | 11520 | 38.40 | 4.80 | 048 | 48.0 | 52.8 | 5760 | 38.40 | 4.80 |
Technical Rating | |||
Insulation Resistance | Min.100MΩ(500VDC) | IEC 60255-5 | |
Dielectric Strength | Between Coil&Contact | 1000VAC 1min | IEC 60255-5 |
Between Contacts | 2500VAC 1min | IEC 60255-5 | |
Operate Time | ≤10ms | ||
Release Time | ≤5ms | ||
Shock Resistance | Operation extremes 10G 11MS | IEC 68-2-27 test Ea | |
Vibration Resistance | 10Hz～55Hz amplitude 1.5mm | IEC 68-2-6 test Fc | |
Leading-out Form | PCB type | IEC 68-2-21 test Ua1 | |
Ambient Temperature | ﹣40℃～85℃ | ||
Relative Humidity | 85% RH | IEC 68-2-3 test Ca | |
Weight | Approx 7.0g | ||
Package | Sealed,Solder-proof type | ||
3 Size and circuitry of power relay 10 ampere
|
Outline Dimensions |
|
Bottom View Layout |
|
| Wiring Diagram(Bottom View) |
