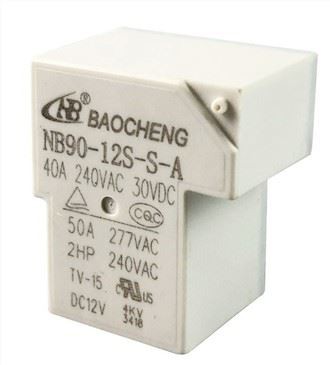

40 ampere 5 pin relay socket

◆High load switching capability: 40A
◆ 2500VAC&4000VAC is avaliable for dielectric strength between contact and coil
◆ Coil insulation grade Class F
◆ Contacts forms NO,NC&SPDT
◆ Dust-proof&Sealed type
◆ Complies with RoHS-Directive
The contact gap can be customized 1.8-2.0mm so that switching current max can reach 40A under 30VDC or 277 VAC. Load termianl width can be customized 1.8mm or 2.8mm to realize low temperature rising.

Send Inquiry

Download

Description

1 Product Overview of 40 ampere 5 pin relay socket

Product feature:

◆High load switching capability: 40A

◆ 2500VAC&4000VAC is avaliable for dielectric strength between contact and coil

◆ Coil insulation grade Class F

◆ Contacts forms NO,NC&SPDT

◆ Dust-proof&Sealed type

◆ Complies with RoHS-Directive

◆ Dimension: 32*27.2*20mm

It Can replace Omron's similar relay with model No. G7G/G8P

Name rule for this product:

NB90 E -12 S -S -A 4 W 4KV L T- 105℃ X

1 2 3 4 5 6 7 8 9 10 11 12

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

1: Relay Model

2: NO max load 30A, none: 40A

3: Coil rated voltage

4: package S: Sealed, D: dust proof.

5: Contact Material: S:AgSnO2 C:AgCdO

6: Contact Form: A:Normally Open B:Normally Close C:SPDT(NO&NC)

7: Pin Form: A4:Normally open(4 pins), A5:Normally open(5 pins); B4:Normally close(4 pins), B5:Normally colse(5 pins); C5:SPDT(5 pins), C6:SPDT(6 pins).

8: W: white None: black

9: 4KV: Dielectric Strength between contact and coil 4000VAC none: Dielectric Strength between contact and coil 2500VAC

10: L: coil power consumption 600mW, none: 900mW

11: T-105℃: ambient temperature 105℃ none: normal ambient temperature

12: X: customer used code

2 Parameter sheet of 40 ampere 5 pin relay socket

Contact Rating
Contact Form	1A,1B,1C
Contact Material	AgCdO AgSnO2
Contact Load Capacity	NB90			NB90E
	40A 240VAC/30VDC 40A 277VAC 1.5HP 1HP 240VAC TV-5 TV-15			30A/20A 240VAC/30VDC 30A 277VAC 1HP 1/2HP 240VAC TV-5
Switching Power Max.		1200W 11000VA
Switching Voltage Max.		30VDC/277VAC
Switching Current Max.		40A
Contact Resistance Max.		50mΩ(1A ,24VDC)
Life expectancy		Electrical	40A: 2x104 30A: 2x104

		Machanical	10 7

Safety Certification
Approval	CQC	TUV	UL
Load	30A/40A 240VAC 30VDC	30A/40A 240VAC 30VDC	30A/40A 277VAC 1.5HP 1HP 1/2 HP 240VAC TV-5 TV-15

Coil Rating
900mw						600mw
No.	Coil Voltage		Coil Resistance Ω±10%	Pick up (VDC) Max. (75% of Rated Voltage)	Drop out (VDC) Min.(10% of Rated Voltage)	No.	Coil Voltage		Coil Resistance Ω±10%	Pick up (VDC) Max. (75% of Rated Voltage)	Drop out (VDC) Min.(10% of Rated Voltage)
	Rated	Max.					Rated	Max.

5	5	6.5	28	3.75	0.5	3	3	3.9	15	2.25	0.3
6	6	7.8	40	4.5	0.6	5	5	6.5	42	3.75	0.5
9	9	11.7	90	6.75	0.9	6	6	7.8	60	4.5	0.6
12	12	15.6	160	9	1.2	9	9	11.7	135	6.75	0.9
15	15	19.5	250	10.25	1.5	12	12	15.6	240	9	1.2
18	18	23.4	360	13.5	1.8	15	15	19.5	375	10.25	1.5
24	24	31.2	640	18	2.4	18	18	23.4	540	13.5	1.8
48	48	62.4	2560	36	4.8	24	24	31.2	960	18	2.4
110	110	143	13445	82.5	11	48	48	62.4	3840	36	4.8

Technical Rating
Insulation Resistance		Min.1000MΩ(500VDC)	IEC 60255-5
Dielectric Strength	Between Contacts	1500VAC, 50/60Hz 1min; Max 4000 VAC	IEC 60255-5
	Between Coil&Contact	2500VAC 50/60Hz Min; (4000VAC Min without Pin #6,when required)	IEC 60255-5
Operate Time		≤15ms
Release Time		≤10ms
Shock Resistance		Operation extremes 10G Damage limits 100G	IEC 68-2-27 test Ea
Vibration Resistance		10Hz～55Hz double amplitude 1.5mm	IEC 68-2-6 test Fc
Ambient Temperature		﹣55℃～85℃;﹣55℃～105℃
Relative Humidity		85% RH , 40℃	IEC 68-2-3 test Ca
Weight		Approx.26.0g
Package		Sealed;Dust-proof type
